CH347T CH343P CH343G CH343K CH9102F CH9102X CH9101U CH9101H CH9101Y CH9101R CH9101N CH341F CH341B CH9340K CH9340C CH340B CH340K CH340N CH340E CH340C CH341A CH341T CH340G CH340T CH9326 CH9143 CH347T CH342F CH342K CH9103M CH9342G CH344L CH344Q CH9344L CH9104L CH348L CH348Q

Note 1: WCH provides a variety of USB serial port drivers, support Windows/Linux/Android/Mac OS and other operating systems. Driver type description:

VCP:The manufacturer provides an emulated serial port driver, supports various operating systems, has multiple functions, high efficiency, and supports high baud rate communication, hardware flow control, GPIO and other functions. The driver only needs to be installed once or it can be installed automatically through the Internet.

HID: All operating systems have built-in this driver, and users do not need to install manually; the disadvantage is that the baud rate supports up to 115200bps, and not compatible with conventional serial port application software.

CDC:For operating system versions lower than Windows 10, users need to install manually. Due to the CDC protocol and features of class driver, the CDC serial port function is not as complete as VCP, and there are some differences in use. For details, see the following application description:

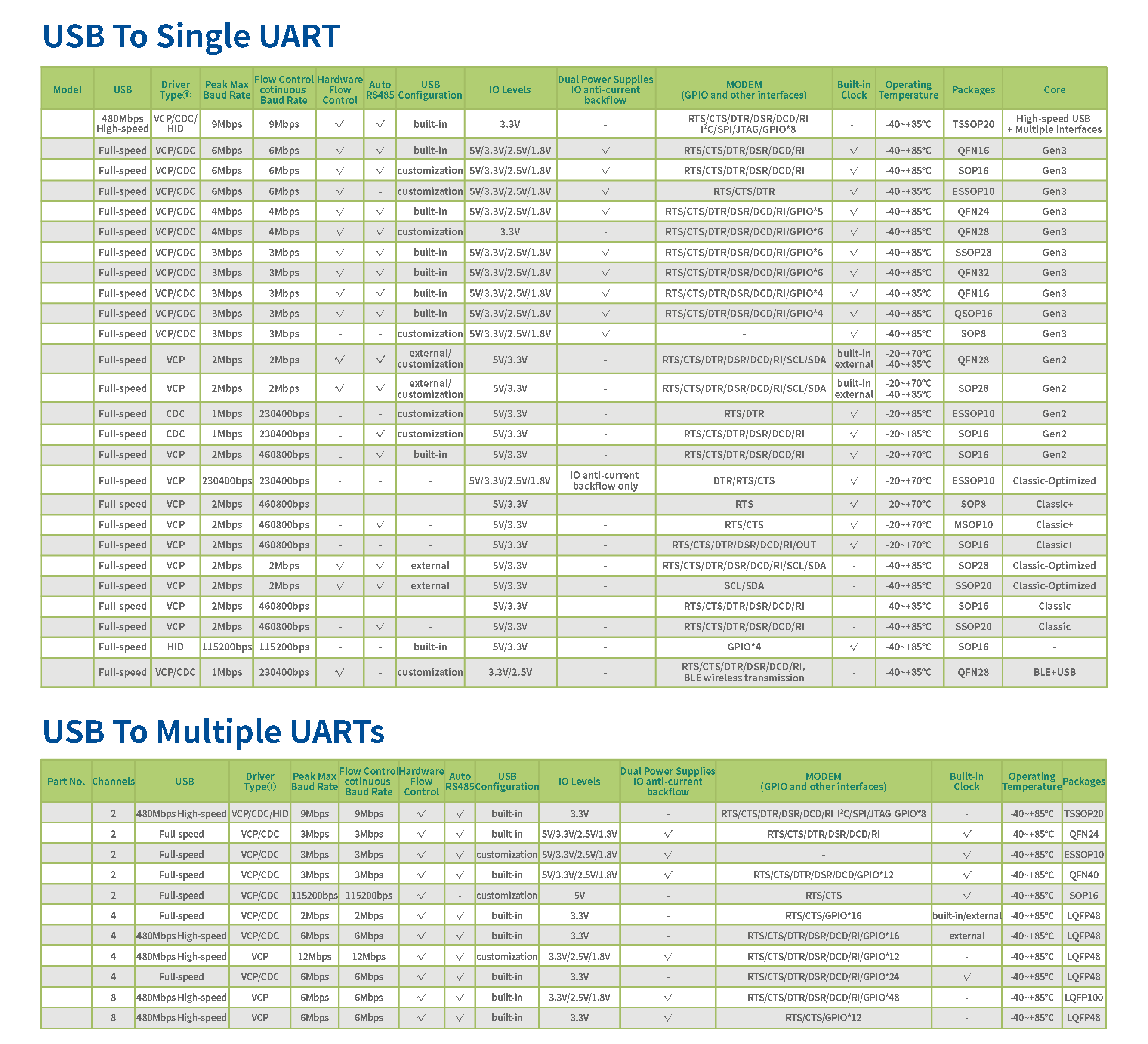

USB to serial port application
